PRODUCTS

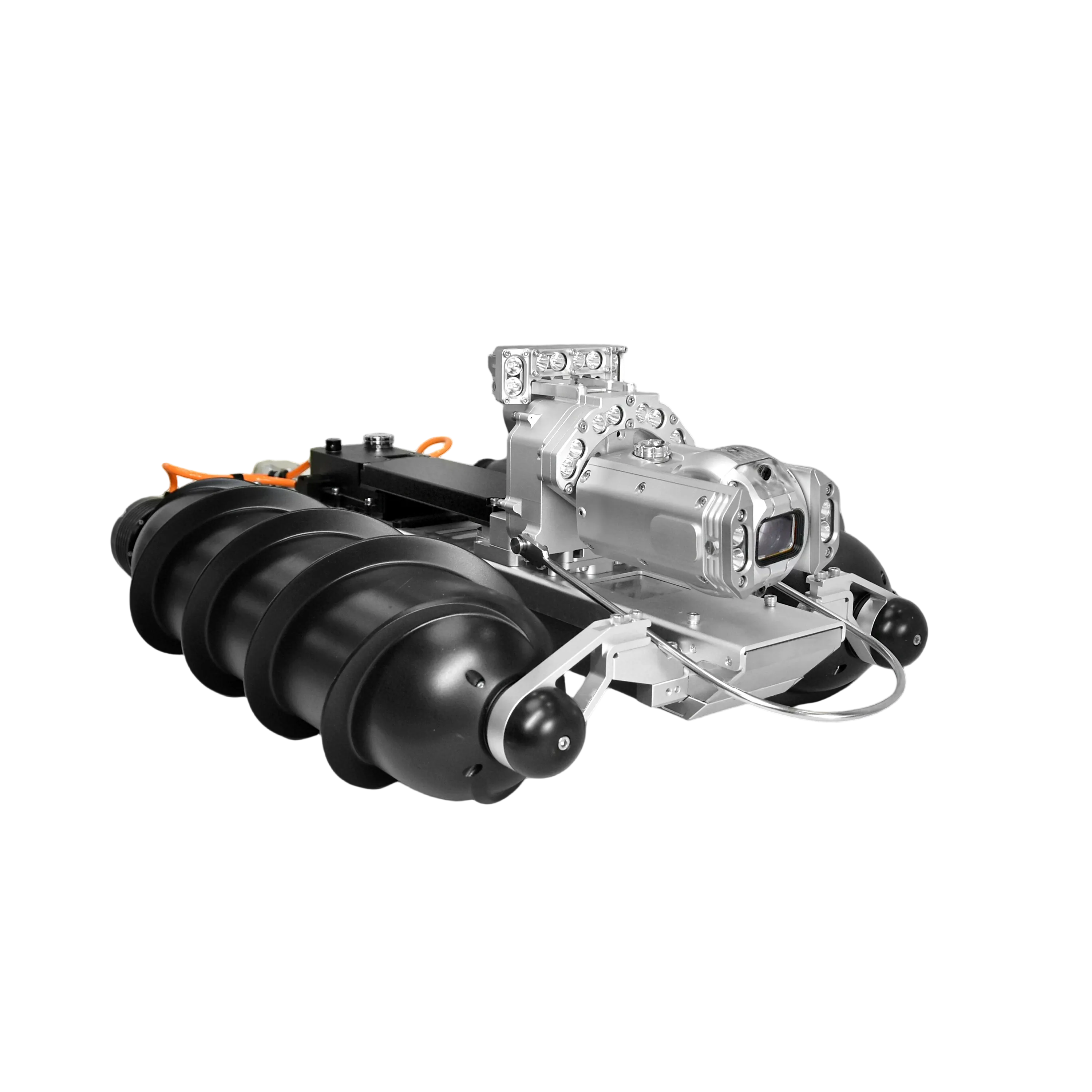

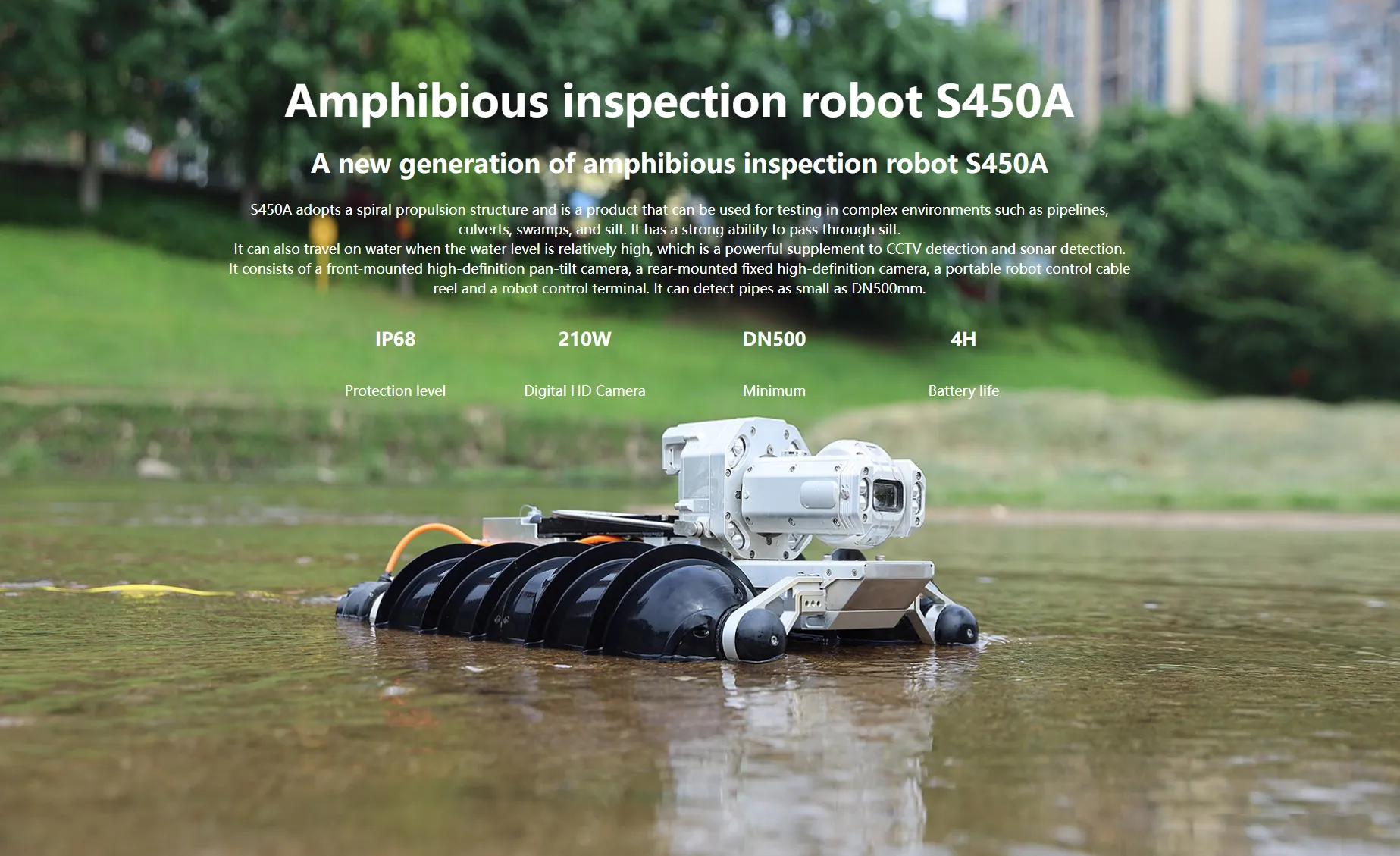

Technical Parameters







Scope of application
DN500mm-6000mm
Pull
14Kg
Gradeability
15°
Protection level
IP68
Camera unit
Front and rear 210W dual digital HD cameras, 360° axial and 270° radial rotation
Drive

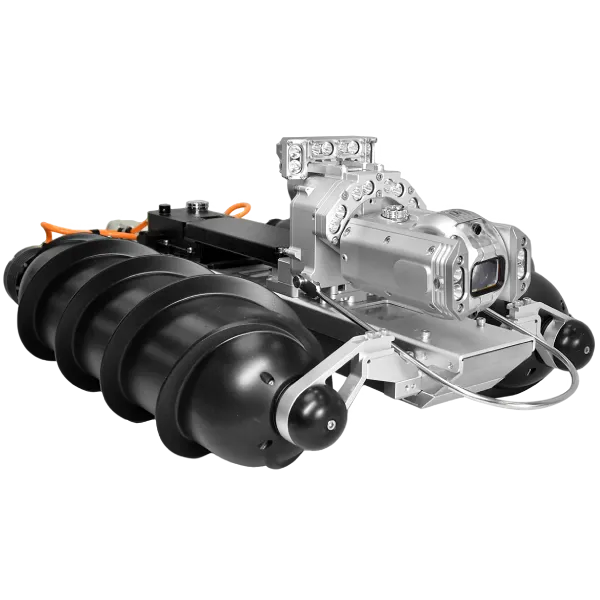

Screw drive
Zoom
10× optical, 16× digital
Reeling method
Automatic pay-off and retracting
Crawling speed
0~26m/min
Cables
Standard configuration 200 meters, customizable
Motor
With high-precision GPS positioning system, real-time positioning
Meter
Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
illumination
High brightness LED
Main light 8x2w, auxiliary light 6x3.5W
Anti-rollover design
Real-time animation simulation shows the robot's posture inside the pipeline (frontand rear tilt angle, left and right tilt angle)
Width measurement
Optional laser width measurement function
Defogging
With one-button defog function





Product Highlights

New camera system upgrade

Newly added laser width measurement and one-key defog function; the lens can scan 360° to achieve arbitrary control of the rotation angle; the head is independently sealed and equipped with an air pressure indicator light; 8 high-brightness lights provide clearer image quality.

Modular compartment design

The S300E adopts a modular compartment design with two compartments that are independently sealed. It is easy to install, maintain, and has excellent interchangeability between equipment accessories.



Comprehensive testing

360° pipe wall detection without blind spots, radial rotation (manual) can be automatically adjusted 230°, axial rotation can be automatically (manually) adjusted 360°

Centimeter-level positioning

Centimeter-level high-precision meter device to accurately locate the robot's position



Sealed dust and water proof technology

More than ten years of experience in sports sealing and waterproofing technology, reaching IP68 protection level

Dual high-definition information collection

Digital high-definition acquisition cameras are used at both the front and rear, and the front camera has been completely upgraded to provide higher-definition images.





Technical Parameters

Scope of application
DN300mm-3000mm
Lens protection
The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
Obstacle surmounting ability
Maximum climbing ability up to 45°
Protection level
IP68
Camera unit
Resolution: 1920*1080, 2.10W pixel non-delay high-definition camera
Drive
Six-wheel drive, powerful horsepower, maximum load capacity up to 50kg
Zoom
10× optical, 12× digital
Wire take-up vehicle
Built-in large-capacity lithium battery, can work continuously for 8-10 hours
Lifting method
Special "X" type electric lift, the lifting frame can reach up to 250mm
Cables
12-core special tensile cable, optional cable length 120~300m
Positioning
With high-precision GPS positioning system, real-time positioning
Meter
Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
illumination
High brightness LED
8×2W
Anti-rollover design
Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width measurement
With laser width measurement function
Defogging
With one-button defog function

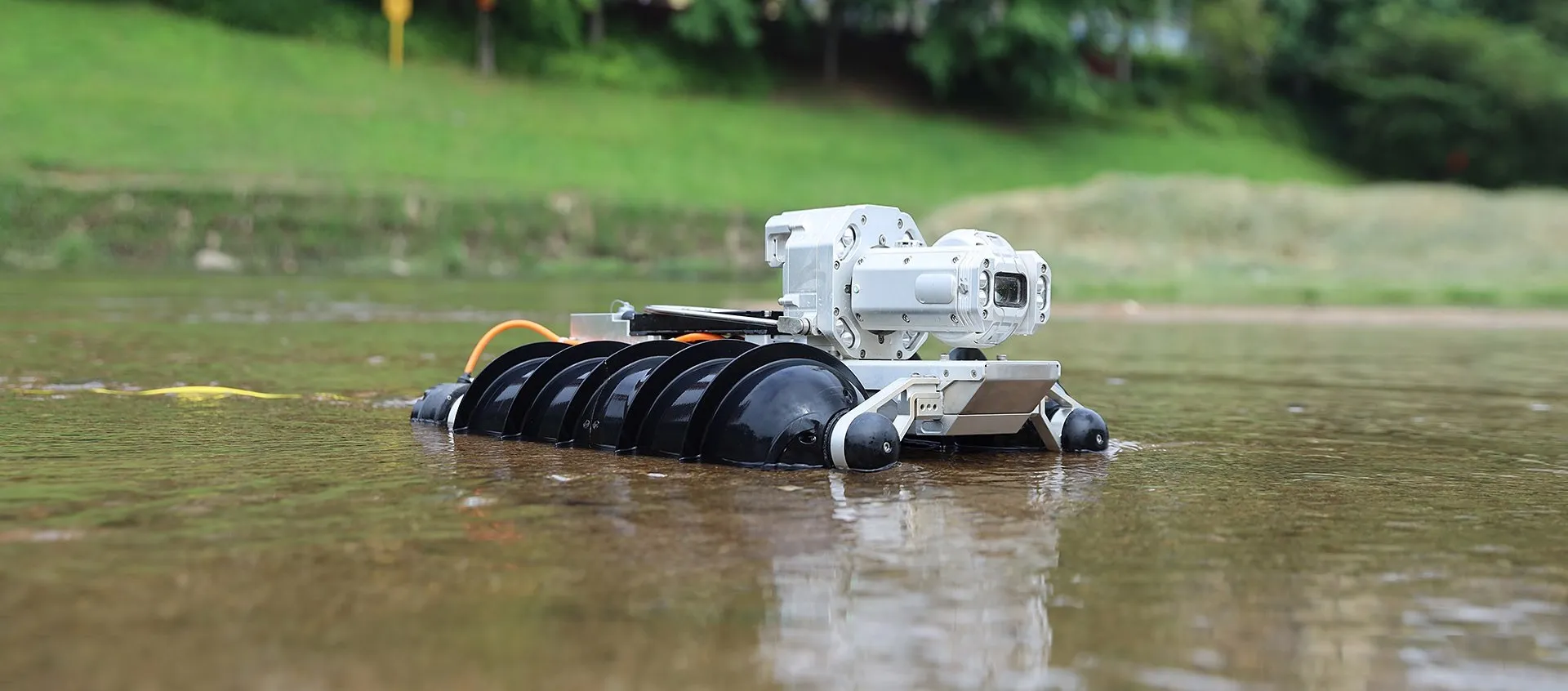

Application scenario cases
