PRODUCTS

Product Highlights



Self-powered, multiple sports postures

Can move forward, backward, turn, ascend, and descend (without a traction rope)

Depth cruise detection

Equipped with advanced sensors, smarter and more efficient

Long distance detection is easier

200~1000m cables can be customized



High-precision sonar, accurate scanning

Fast scanning speed and high measurement accuracy

Tablet operation, one-click report generation

Provide important basis for safe operation and maintenance

Dual camera system

Front and rear view 210W starlight camera







Technical Parameters







Applicable pipe diameter
DN500mm-6000mm
Sonar head
Frequency: 2.25MHz, taper: 1.4°,range: 0.25~6m, scans 1 circle every 1 second
Vehicle size
600x424x251mm
Protection level
IP68, waterproof depth: 20 meters
Vehicle weight
20Kg
Cable specifications
Standard 200m zero buoyancy cable (customizable 200~1000m)
Travel speed
Underwater: 0.8m/s
Battery life
High gear 2h, low gear 4h
Thruster
2 horizontal, 2 vertical
Depth cruise
Can cruise underwater at a preset depth
Camera
On water: front and rear vision 210W, front and rear lights 2*2Weach; Underwater: front vision 210W, light 2*2W
Directional cruise
Can cruise in preset directions





Product Highlights



Self-powered, multiple sports postures

Can move forward, backward, turn, ascend, and descend (without a traction rope)

Depth cruise detection

Equipped with advanced sensors, smarter and more efficient

Long distance detection is easier

200~1000m cables can be customized



High-precision sonar, accurate scanning

Fast scanning speed and high measurement accuracy

Tablet operation, one-click report generation

Provide important basis for safe operation and maintenance

Dual camera system

Front and rear view 210W starlight camera







Technical Parameters







Applicable pipe diameter
DN500mm-6000mm
Sonar head
Frequency: 2.25MHz, taper: 1.4°,range: 0.25~6m, scans 1 circle every 1 second
Vehicle size
600x424x251mm
Protection level
IP68, waterproof depth: 20 meters
Vehicle weight
20Kg
Cable specifications
Standard 200m zero buoyancy cable (customizable 200~1000m)
Travel speed
Underwater: 0.8m/s
Battery life
High gear 2h, low gear 4h
Thruster
2 horizontal, 2 vertical
Depth cruise
Can cruise underwater at a preset depth
Camera
On water: front and rear vision 210W, front and rear lights 2*2Weach; Underwater: front vision 210W, light 2*2W
Directional cruise
Can cruise in preset directions

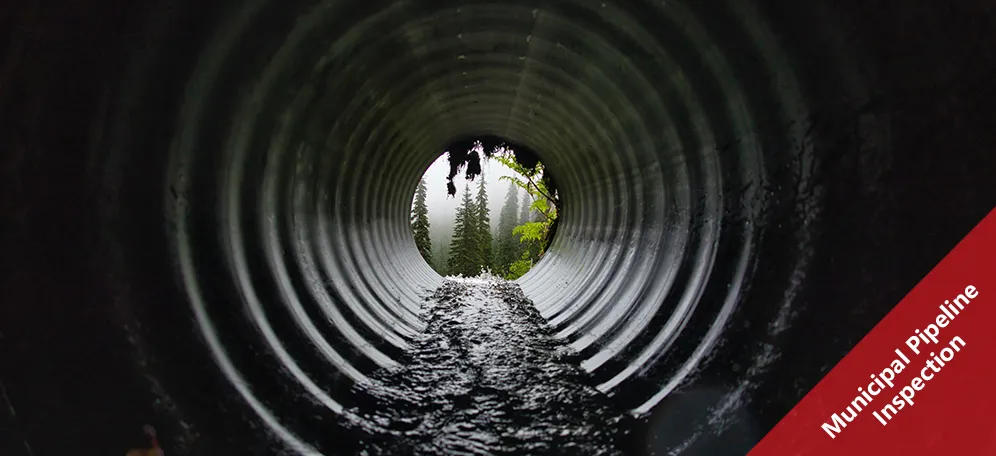

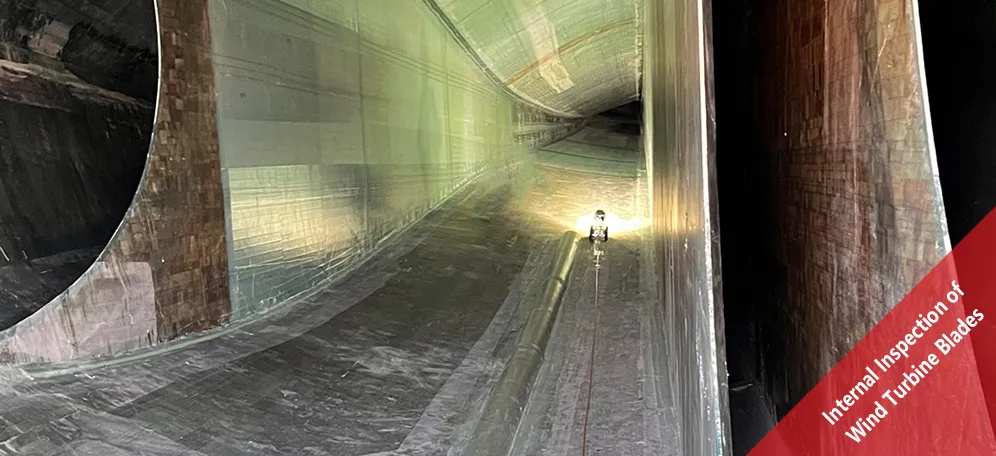

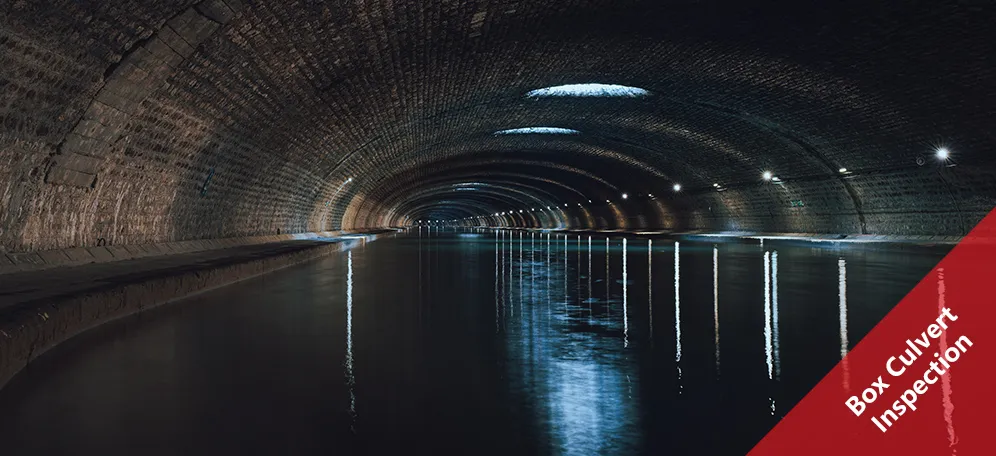

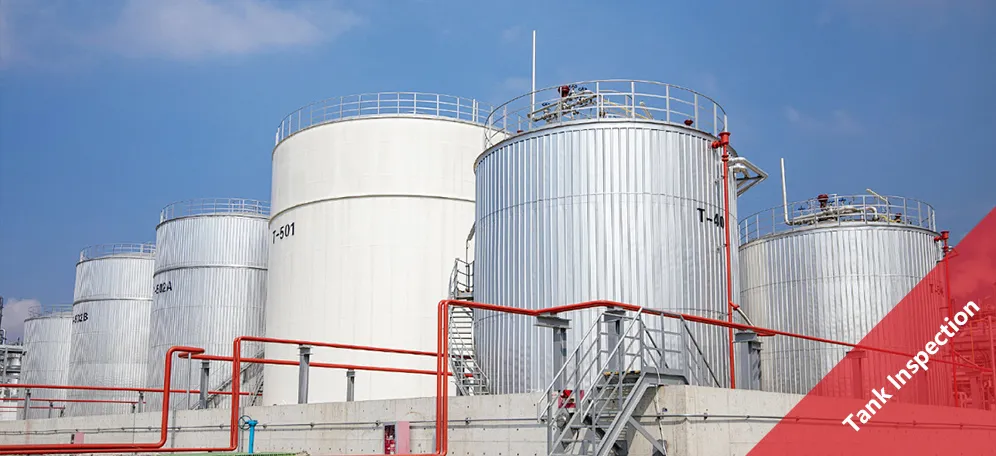

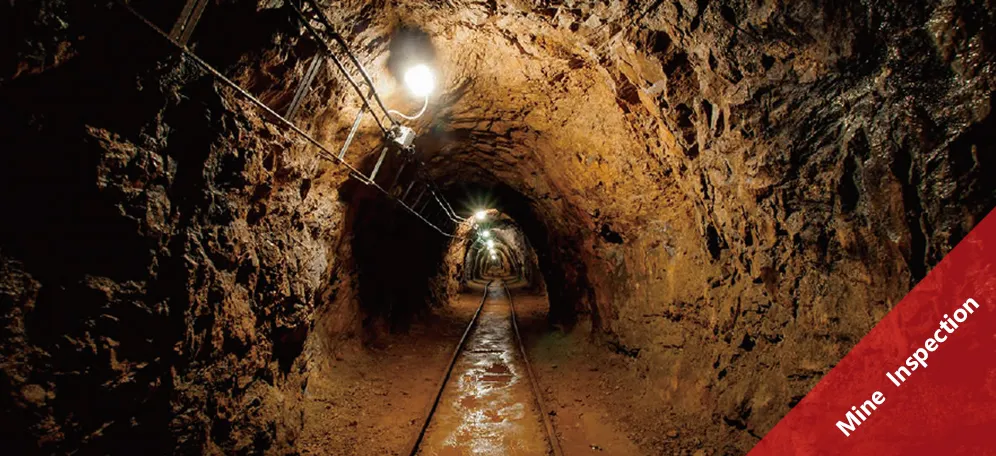

Application scenario cases

Application scenario cases
