S200CHD Pipe Inspection Robot: Intelligent Wheeled, High - Res Camera, Defect Detection & Professional Report Output

Focus On Embodied Intelligent Special-Purpose Robots Of Confined Spaces

PRODUCTS

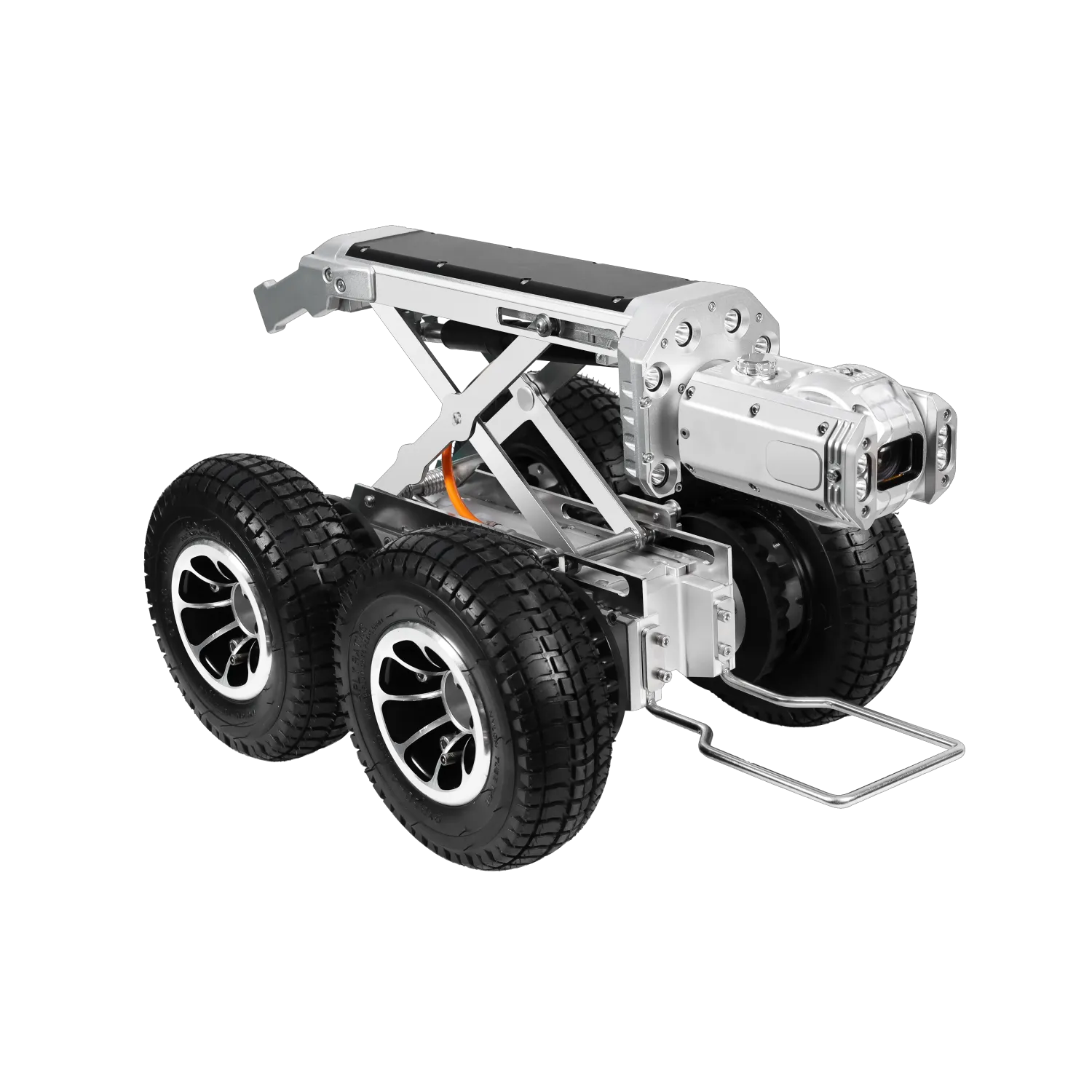

S200CHD Pipeline Inspection Robot

High-definition, smooth operation, superior inspection performance

The S200CHD pipeline inspection robot uses an intelligent wheeled motion mechanism as its platform.It employs an industrial-grade high-resolution color camera unit, motion posture detection unit, and intelligent control video recording terminal, along with a powerful lighting source and a high-precision meter-counting cable rewinding device.It can enter the pipeline to record video, capture images of defects, record defect location information, and output professional pipeline inspection reports .

IP68
Protection Level

1090F1
High-Definition Camera

GPS
High-Precision Positioning

8-10H
Ultra-Long Battery Life

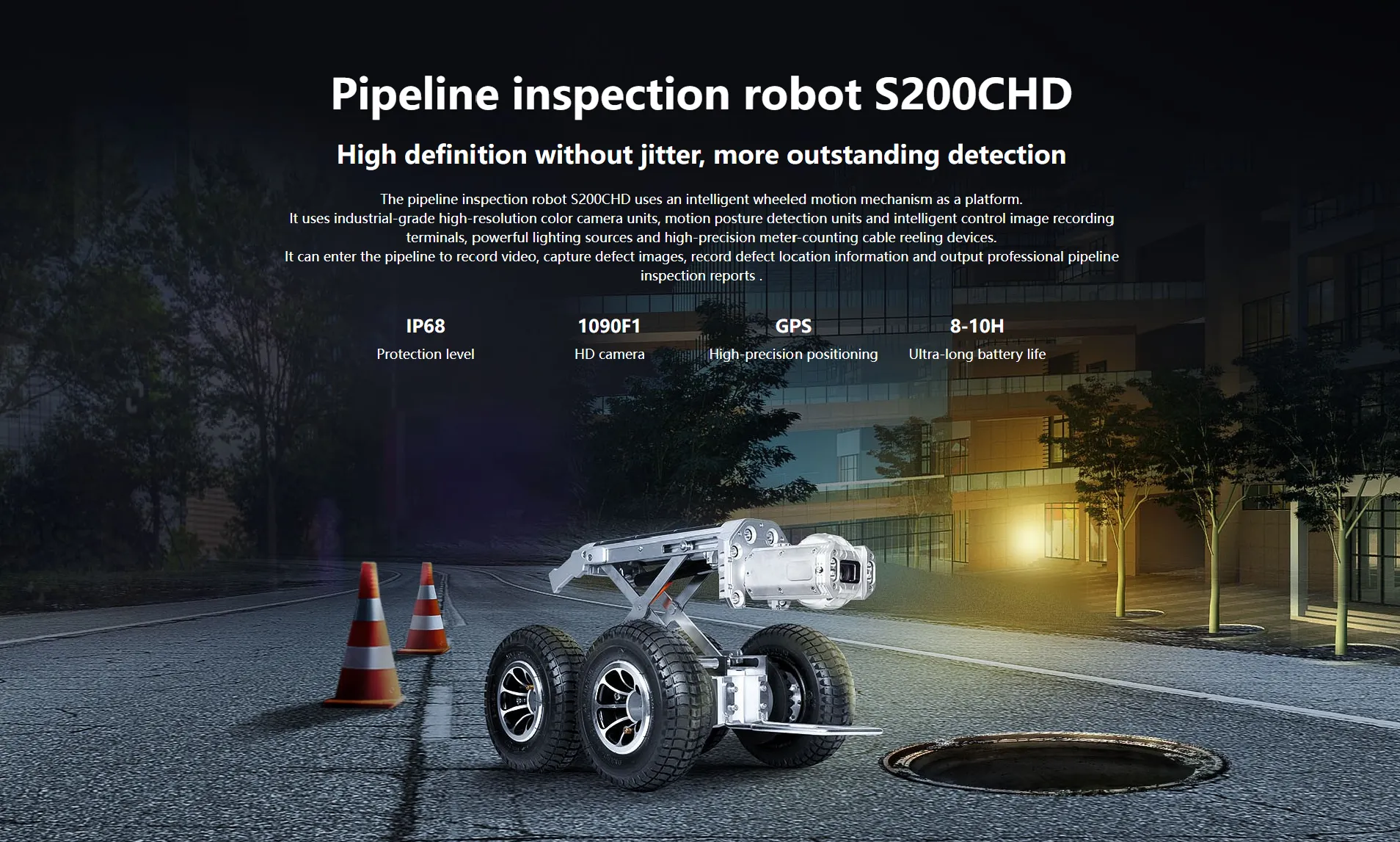

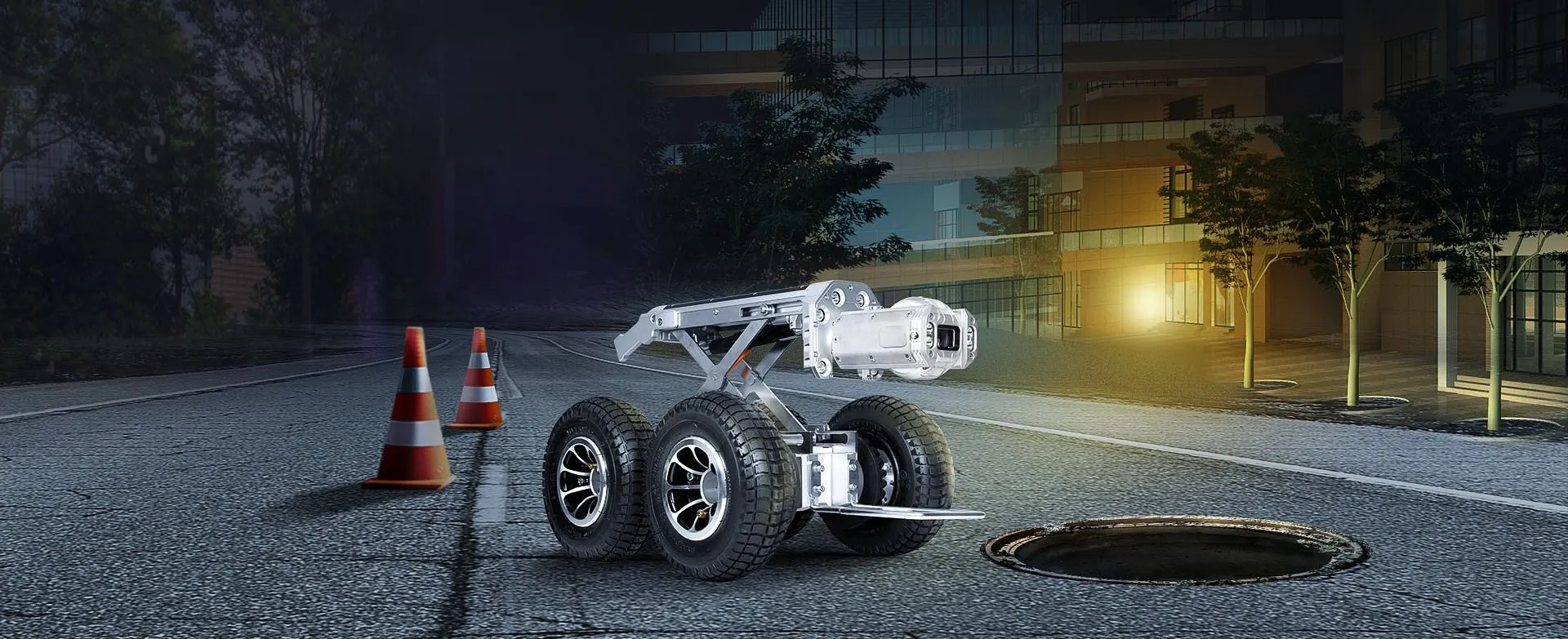

S200CHD Pipeline Inspection Robot

High-definition, smooth operation, superior inspection performance

IP68
Protection Level

109F1
High-Definition Camera

GPS
High-Precision Positioning

8-10H
Ultra-Long Battery Life

PRODUCT HIGHLIGHTS


New Camera System Upgrade Newly added laser width measurement and one-key defog function; the lens can scan 360° to achieve arbitrary control of the rotation angle; the head is independently sealed and equipped with an air pressure indicator light; 8 high-brightness lights provide clearer image quality	Modular Compartment Design The S200C adopts a modular compartment design with two compartments that are independently sealed. It is easy to install, maintain, and has excellent interchangeability between equipment accessories.	Comprehensive Inspection 360° pipe wall detection without blind spots, radial rotation (manual) can be automatically adjusted 230°, axial rotation can be automatically (manually) adjusted 360°


Centimeter-Level Positioning Centimeter-level high-precision meter device to accurately locate the robot's position	Sealed Dust and Water Proof Technology More than ten years of experience in sports sealing and waterproofing technology, reaching IP68 protection level	Dual High-Definition Information Collection Digital high-definition acquisition cameras are used at both the front and rear, and the front camera has been completely upgraded to provide higher-definition images

Technical Parameters

Scope Of Application DN200mm-3000mm	Lens Protection The front of the vehicle is equipped with a detachable anti-collision probe to prevent the nose from being damaged by external forces
ObStacle Surmounting Ability Maximum climbing ability up to 40°	Protection Level IP68
Camera Unit Resolution: 1920*1080, 210W pixel non-delay high-definition camera	Drive Six-wheel drive, powerful horsepower, maximum load capacity up to 50kg
Zoom 10× optical, 12× digital	Wire Take-Up Vehicle Manual, electric take-up (optional)
Lifting Method "X" type electric lifting frame, with large lifting torque, can easily lift the equipment, the lens lift is 200mm	Cable 12-core special tensile cable, optional cable length 120~300m
Positioning With high-precision GPS positioning system, real-time positioning	Meter Built-in high-precision electronic encoder, the meter value is continuously displayed on the control unit
illumination High brightness LED 8×2W	Anti-Rollover Design Superimposed wheel hub and built-in anti-rollover software alarm function, real-time animation simulation to display the crawler's posture inside the pipeline (front and rear tilt angle, left and right tilt angle, lifting platform height)
Width Measurement With laser width measurement function	Defogging With one-button defog function

PRODUCT HIGHLIGHTS


Camera System Upgrade New features include laser width measurement and one-click defogging; 360° lens scanning with freely controllable rotation angle; independently sealed camera head with air pressure indicator; and 8 high-brightness LEDs for clearer image quality	Modular Compartment Design The S300E adopts a modular compartmentalized design, with two compartments independently sealed, making installation simple, maintenance convenient, and equipment parts highly interchangeable


Comprehensive Inspection 360° pipe wall inspection with no blind spots; radial rotation (manual) can be automatically adjusted to 230°; axial rotation can be automatically (manually) adjusted to 360°	Centimeter-Level Meter Positioning A centimeter-level high-precision meter measuring device accurately locates the robot's position


Sealed Dustproof And Waterproof Technology With over a decade of experience in sports sealing and waterproofing technology, It has IP68 protection rating	Dual HD Information Acquisition It uses digital high-definition cameras at both the front and rear, with a completely upgraded front camera for higher-definition images

Technical Parameters

Scope Of Application DN200mm-3000mm	Lens Protection The front of the vehicle is equipped with a detachable anti-collision probe to prevent damage to the nose from external forces
Obstacle Surmounting Ability Maximum climbing ability up to 40°	Protection Level IP68
Camera Unit Resolution: 1920*1080, 2.1MP high-definition camera with no latency	Drive Six-wheel drive, powerful engine, and a maximum load capacity of 50kg
Multiply 10× optical, 12×digital camera	Cable Winding Vehicle Manual or electric reel-in (optional)
Lifting Method The "X"-shaped electric lifting frame has high lifting torque, which can easily lift the mounted equipment, with a lens lifting range of 200mm.	Cable 12-core special tensile-resistant cable, available in lengths of 120~300m
Location Function Equipped with a high-precision GPS positioning system, real-time positioning	Meter Built-in high-precision electronic encoder; meter readings are continuously displayed on the control unit
illumination High brightness LED 8×2W	Anti-Rollover Design The superimposed wheel hubs and built-in anti-rollover software alarm function provide real-time animation simulation of the crawler's posture inside the pipe (forward and backward tilt angles, left and right tilt angles, and lifting platform height)
Width Measurement Equipped with laser width measurement function	Defogging Equipped with one-button defogging function
