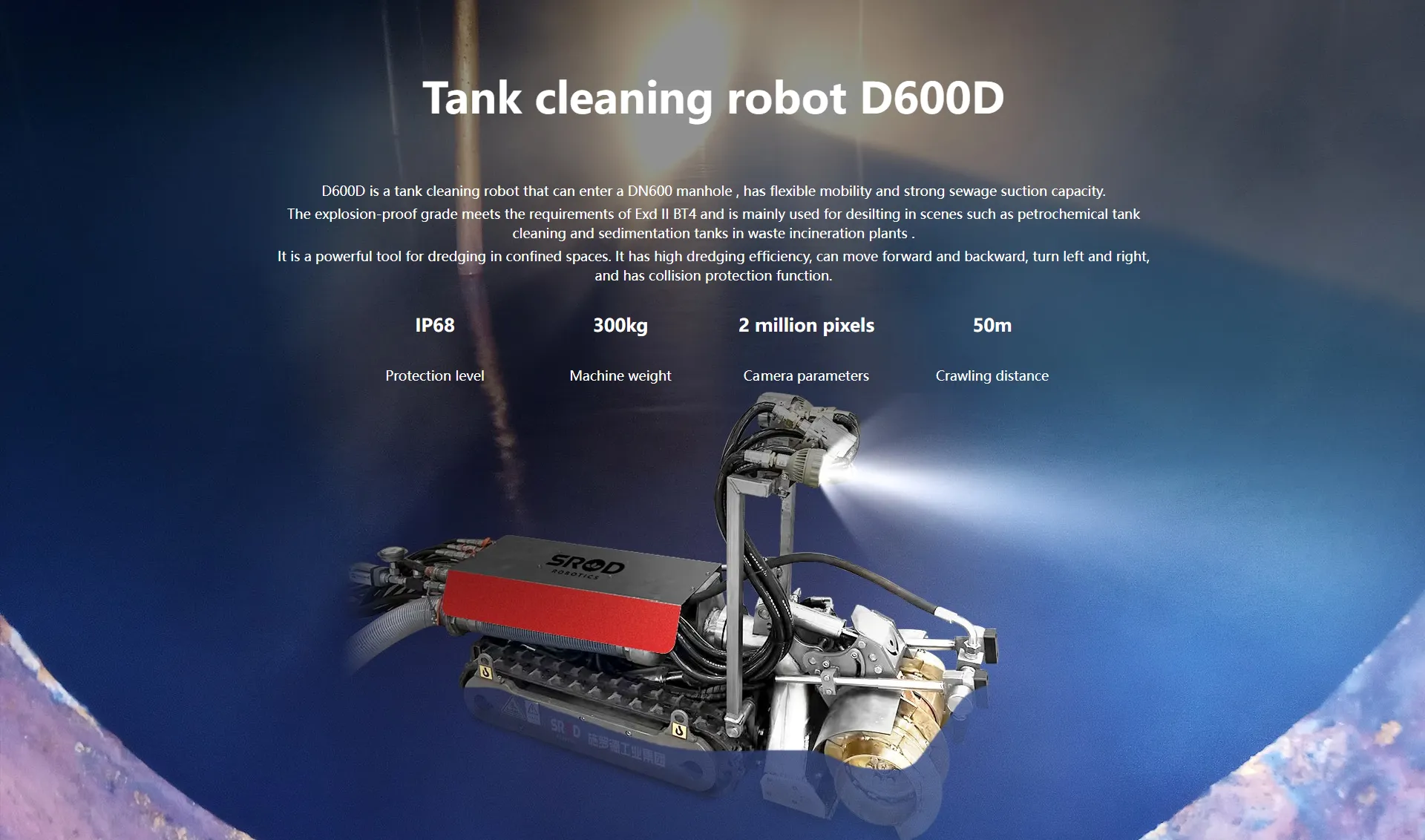

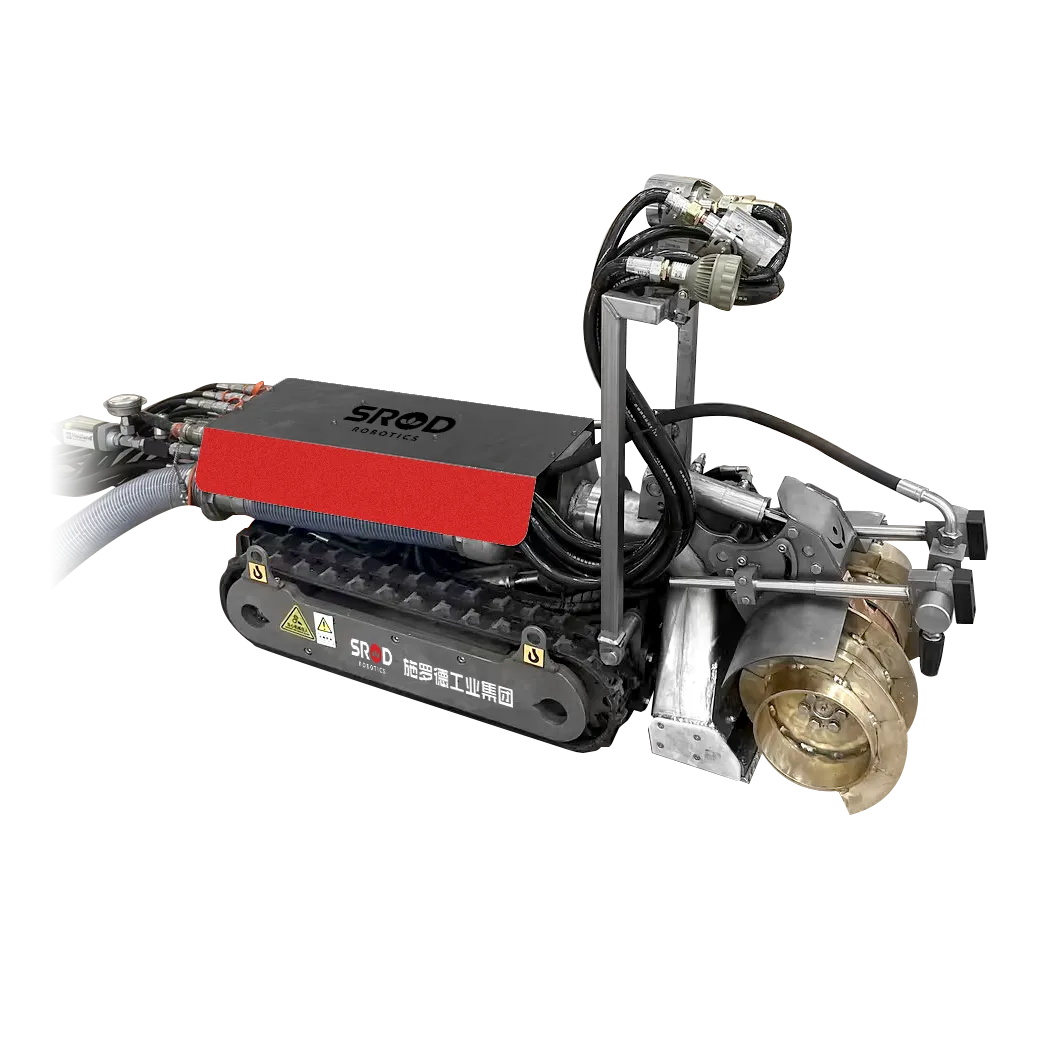

D600D Tank Cleaning Robot



Efficiently Cleans Large Industrial Tanks



The D600D is a tank cleaning robot that can enter DN600 manholes , is highly mobile, and has a strong suction capability.It is mainly used for sludge removal in scenarios such as tank cleaning in petrochemical plants and sedimentation tanks in waste incineration plants .And It is a powerful tool for dredging in confined spaces, with high dredging efficiency, the ability to move forward and backward, turn left and right, and has collision protection function.



IP68
Protection Level

300kg
Total Weight

200W*2
Camera Parameters

50m
Crawling Distance

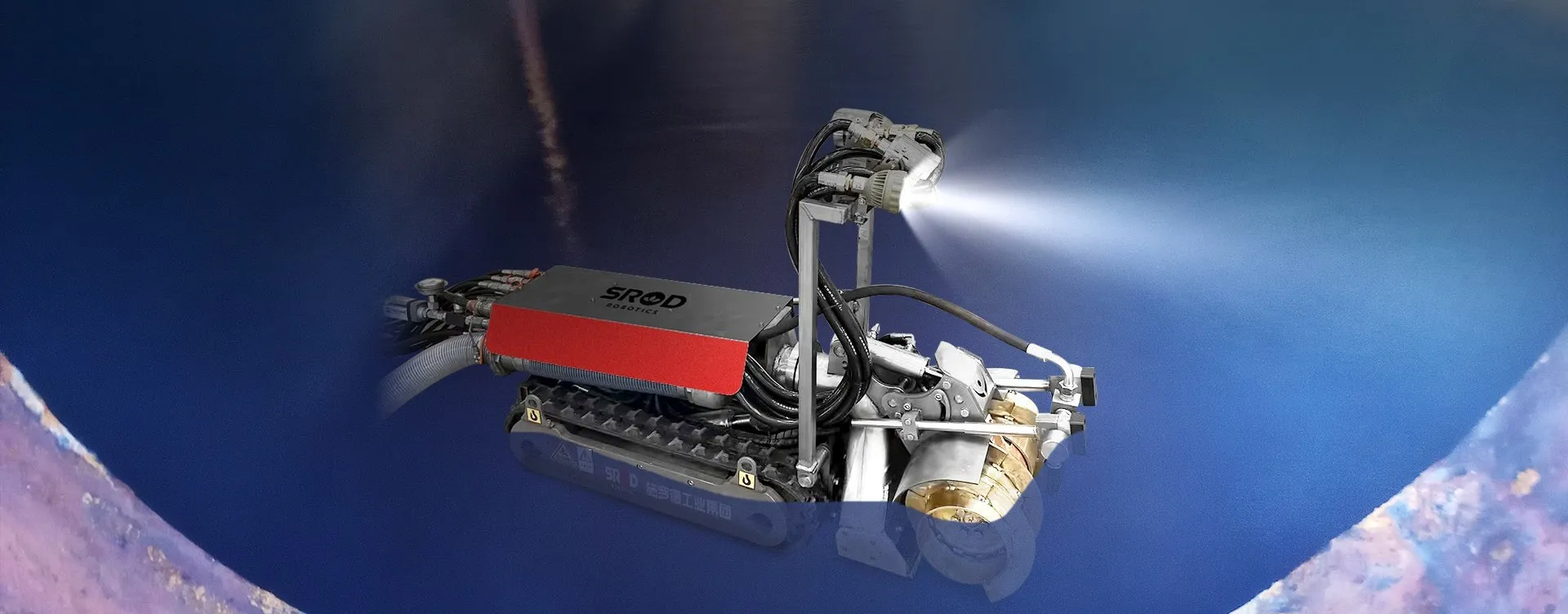

D600D Tank Cleaning Robot



Efficiently Cleans Large Industrial Tanks



The D600D is a tank cleaning robot that can enter DN600 manholes , is highly mobile, and has a strong suction capability.It is mainly used for sludge removal in scenarios such as tank cleaning in petrochemical plants and sedimentation tanks in waste incineration plants .And It is a powerful tool for dredging in confined spaces, with high dredging efficiency, the ability to move forward and backward, turn left and right, and has collision protection function.



IP68
Protection Level

300kg
Total Weight

200W*2
Camera Parameters

50m
Crawling Distance

PRODUCT HIGHLIGHTS



By Eliminating The Need For Human Entry Clean

Achieve a high standard of cleaning with faster turnaround, no scaffolding, and reduced manpower and wastewater

Strong Self-Propelled Climbing Ability

It has a climbing angle of 30 degrees, is highly maneuverable, and can move forward, backward, left, right, and turn. It also features collision protection

Anti-Rollover Safety System

When the vehicle's tilt angle exceeds a safe angle, the system will issue a warning and prohibit further movement to prevent rollover. It can also display information such as crawling speed, distance, and tilt angle (optional)



Strong Suction Power

Deposits can be removed precisely, quickly, and efficiently using a sludge suction pump

Remote Intelligent Control

Remote control operation makes work more flexible, and its high level of safety eliminates the risk of personal injury

Unique Nozzle Design

The nozzles can rinse and dilute sediment, facilitating suction. Different augers can be used depending on the application.







Technical Parameters







Robot Body Size
2225 x 468 x 452mm
Camera Parameters
200W pixels
Robot Weight
300Kg
Control Platform
Manual actuator + wireless tablet
Diameter Of Sewage Suction Pipe
75mm
Robot Body Operating Temperature
-20℃—60℃
Cable Length Of Hydraulic Take-UP Vehicle
50m
Protection Level
IP68
Hvdraulic Power Station System Workingpressure
Maximum 31Mpa
Hydraulic Take-up Vehicle Dimensions
1933 x1387 x1577mm
Hydraulic Power Station Flow
90L/min
Hiah Pressure Water Pump Stationdischarge
50L/min





PRODUCT HIGHLIGHTS



By Eliminating The Need For Human Entry Clean

Achieve a high standard of cleaning with faster turnaround, no scaffolding, and reduced manpower and wastewater

Strong Suction Power

Deposits can be removed precisely, quickly, and efficiently using a sludge suction pump



Strong Self-Propelled Climbing Ability

It has a climbing angle of 30 degrees, is highly maneuverable, and can move forward, backward, left, right, and turn. It also features collision protection

Remote Intelligent Control

Remote control operation makes work more flexible, and its high level of safety eliminates the risk of personal injury



Anti-Rollover Safety System

When the vehicle's tilt angle exceeds a safe angle, the system will issue a warning and prohibit further movement to prevent rollover. It can also display information such as crawling speed, distance, and tilt angle (optional)

Unique Nozzle Design

The nozzles can rinse and dilute sediment, facilitating suction. Different augers can be used depending on the application





Technical Parameters

Robot Body Size
2225 x 468 x 452mm
Camera Parameters
200W pixels
Robot Weight
300Kg
Control Platform
Manual actuator + wireless tablet
Diameter Of Sewage Suction Pipe
75mm
Robot Body Operating Temperature
-20℃—60℃
Cable Length Of Hydraulic Take-UP Vehicle
50m
Protection Level
IP68
Hvdraulic Power Station System Workingpressure
Maximum 31Mpa
Hydraulic Take-up Vehicle Dimensions
1933 x1387 x1577mm
Hydraulic Power Station Flow
90L/min

Hiah Pressure Water Pump Stationdischarge
50L/min

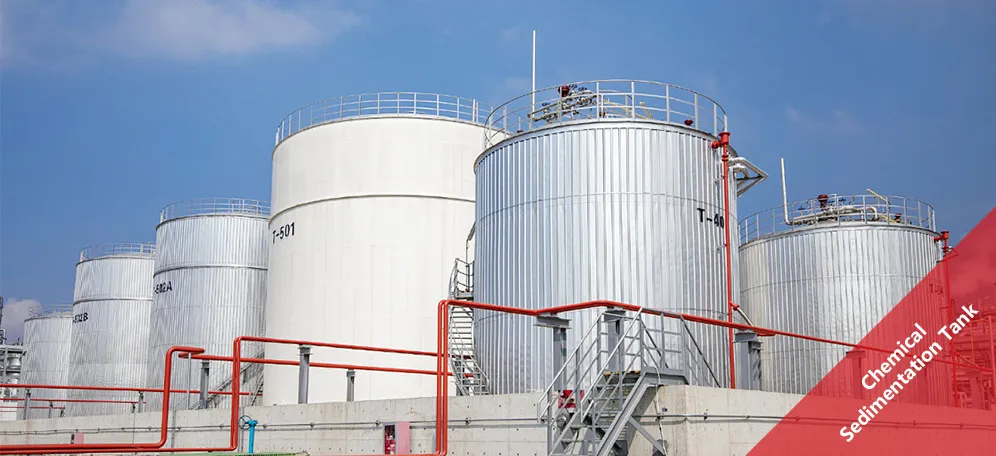

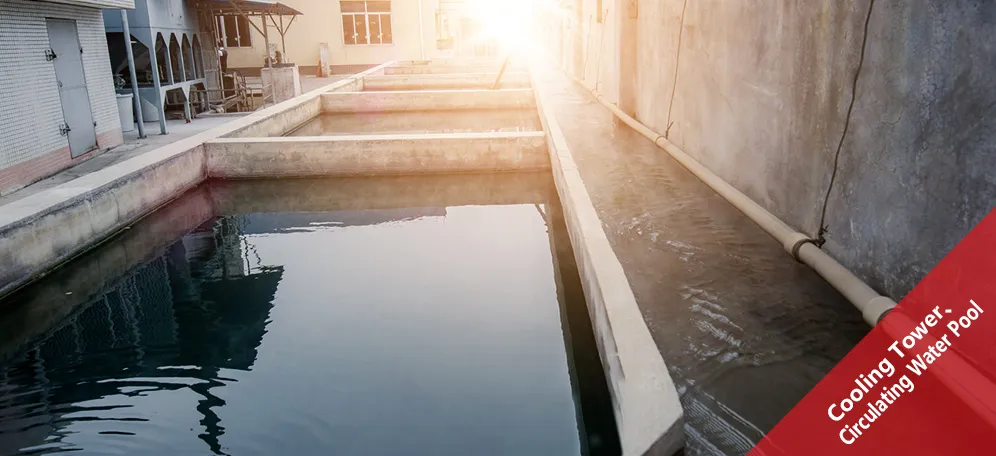

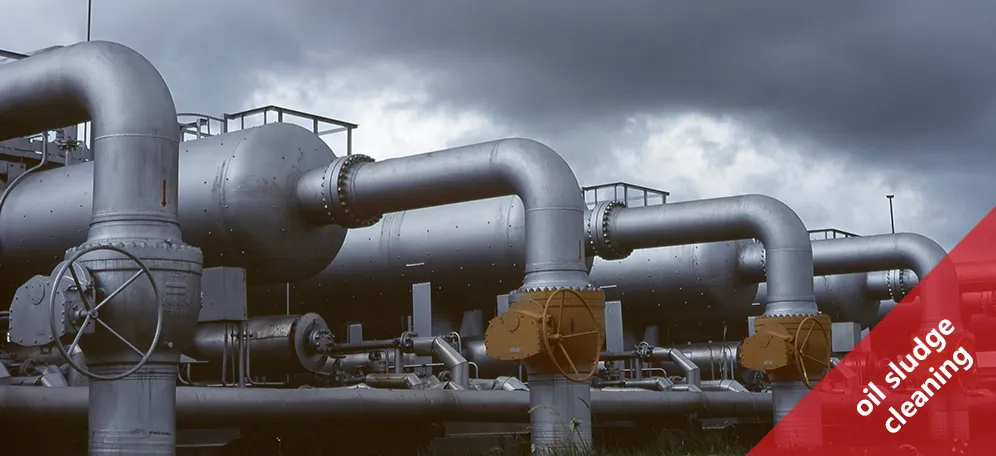

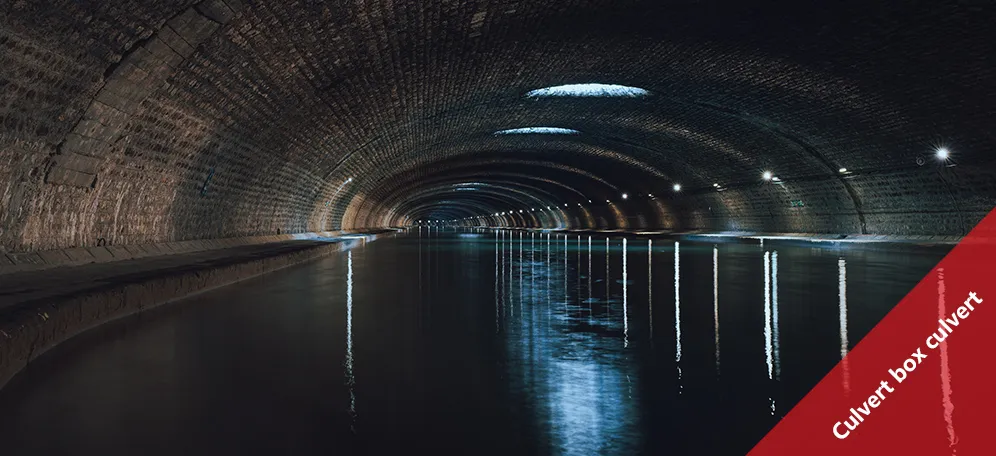

Application Scenario Cases



Application Scenario Cases
